Which Hydraulic Hose Type to Choose for Your Application

06.04.2024

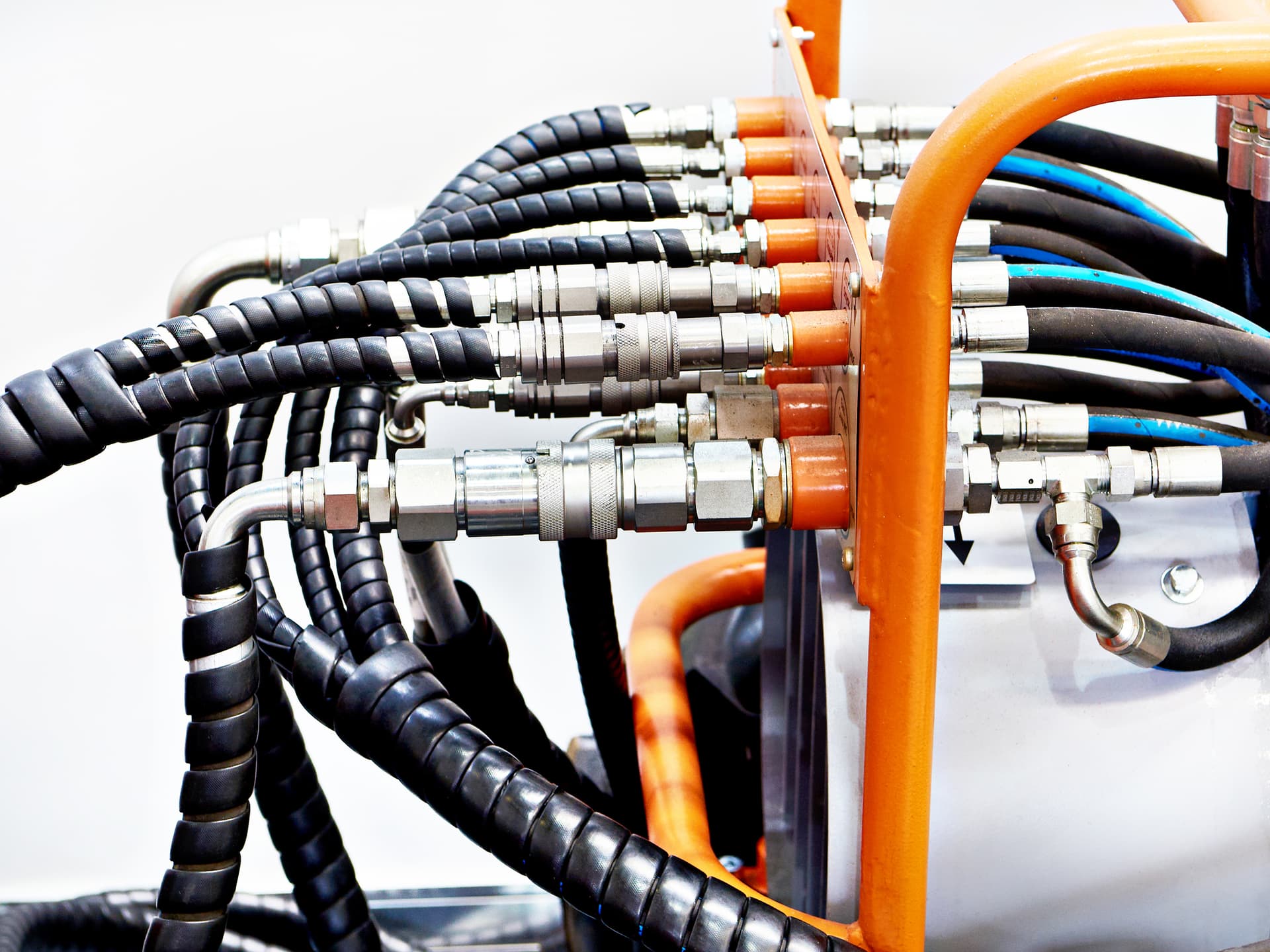

Introduction

The most common hydraulic hose types are SAE Standard hoses, Low-Pressure Hose, Thermoplastic Hydraulic Hose, and Spiral Steel Wire Hydraulic hoses. If you’re having trouble choosing the right hose for your application S.T.A.M.P mnemonic could be handy.

Hydraulic systems are crucial to driving many industrial machinery and processes, requiring hydraulic oil to be forced at high pressure through a network of valves, pumps, and cylinders. Hydraulic hoses are the most essential components of these systems and connect all of these components together for smooth operation. Given the high pressures a hydraulic hose needs to withstand and the often tight space restriction requirements, the application certainly requires the current hose to be specified.

Typically, hydraulic hoses comprise of three parts. An inner tube that carries the hydraulic oil, a middle layer(s) that reinforces the inner tube to withstand pressure, and an outer layer that guards the whole construction. The construction may change depending on the application, so look out for these hose types if you’re wondering which hydraulic hose type to choose for your application.

1. SAE Standard Hoses

SAE standard hydraulic hoses are some of the most commonly used hoses out there. The standard ranges from R1 to R18, each defining the construction of the hydraulic hose. The standard defines what material the inner tubing is made from so that you choose the correct one for fluid compatibility and operating temperature. It also tells you how many layers of reinforcement are there and what material they’re made from to give you an idea of the level of pressure it can withstand.

In addition to these, it highlights the build of the cover material, telling you how resistant it is to the external environment. That being said, here are common hydraulic hoses based on the SAE standard.

2. Low-Pressure Hose

The SAE 100R4 and 100R6 are commonly used for low-pressure applications like return lines, anti-static lines, and vacuum applications. It is for this reason that they are low-pressure hoses with a layer or layers of braided textile fibers. Depending on the pressure, it may require a spiral of steel wire as well. Typically, they are suitable for petroleum and water-based hydraulic fluids and are small enough to be routed easily.

3. Thermoplastic Hydraulic Hose

Thermoplastic refers to the inner tubing material used. What sets it apart from its rubber counterpart is that for the same inner diameter, a thinner inner tubing polymer material is required that is more flexible, durable, easy to construct, and works great in low-temperature conditions. The SAE 100R7, R8, and R18 define the construction of this type of hydraulic hose.

They are commonly used in applications that require medium pressure hydraulic oil like construction equipment, machine tooling, and hydraulic lifts. They even come in non-conductive variants for use in applications requiring electrical isolation.

4. Spiral Steel Wire Hydraulic Hose

Spiral steel wire hydraulic hoses are used for applications that require higher than normal pressures and superior resistance to flexing like heavy-duty machinery used in agriculture, logging, or mining. What makes R13 so suitable for high-pressure applications is the high number (minimum 4) of reinforcement braids used in its construction. Additionally, they are separated by a ply layer running in opposite directions to ensure adhesion between each layer, including the inner tube and the cover.

Note:

These are just some of the SAE standard hoses mentioned. Even within the above-mentioned standards, there are multiple subcategories. It all depends on your requirements that determine which hydraulic hose type to choose.

S.T.A.M.P

Choosing the correct hose application won’t be complete without a mention of the popular mnemonic used in the industry – S.T.A.M.P. It conveniently summarizes the factors to look out for when choosing hydraulic hoses for your application.

Size

Size refers to the inner diameter (ID) of a hydraulic hose and determines the flow velocity of the fluid being carried. It is given by the following formula:
Where:
D=Hose ID
Q=Flow in gpm
V=Velocity in feet per second
Low flow in hydraulic fluid dampens the response time of a hydraulic system, whereas a high flowing fluid may damage hydraulic lines.

When searching for the correct hose size, you may encounter the dash number system that indicates the hose size. It normally precedes the part number after a hyphen (-). The number times 1/16 gives you the true value of the hose ID.
Temperature
External working temperature, as well as fluid temperature, need to be considered when selecting a hose. Not all hoses use the same materials for the inner lining and the outer cover. Hence, they have different temperature ratings depending on the rubber or polymer used in their construction. Make sure you select those hydraulic hoses that can withstand the ambient temperature as well as the inner working temperature of the fluid with an additional margin of error for the upper limit. Otherwise, the hydraulic system may get clogged with debris from the inner lining, hoses may burst, and leaks may become more common.

Application

Application refers to all the considerations you need to keep in mind before selecting a hydraulic hose assembly. It’s best to create a checklist to keep track of the different external influences on the hose, like the machinery it is intended to be a part of, what elements it’ll be exposed to, if it has to pass through constrictions, etc.

Media

Media or medium is the official term used to describe the fluid being carried in a hydraulic system. Since a system has multiple hydraulic hoses conveying fluid to different parts, it’s essential that all of them are compatible with the fluid carried. Otherwise, the inner tubing may react with the medium, causing it to erode and clog up the system. Additionally, the outer cover must also be resistant to the element it is subjected to.

Pressure

Hydraulic systems rely on the changes in pressure and velocity to carry out their function. The magnitude of this pressure varies throughout different components of the hydraulic system, each experiencing surges and drops while the system operates. In order to maintain the pressure and withstand spikes due to loading, the hydraulic hoses you select must have a working pressure rating (in PSI) that conveys fluid without bursting and remains intact after transient changes.
