Understanding and Selecting Hose Fittings for Hydraulic Systems


Understanding and Selecting Stainless Steel Hose Fittings for Hydraulic Systems

In the intricate world of plumbing and hydraulic systems, hose fittings are indispensable components that bridge hydraulic hoses, pipes, and tubes with other crucial parts like valves, pumps, and cylinders. These fittings are available in a plethora of materials and designs, tailored to suit specific applications and environments.

Material Choices for Hose Fittings

The durability and functionality of hose fittings largely hinge on the material used in their construction. Common materials include:

- Plastic: Lightweight and corrosion-resistant, suitable for less demanding applications.
- Brass: Offers good corrosion resistance and thermal conductivity, ideal for heating systems.
- Steel: High strength and durability, used in general plumbing and some hydraulic systems.
- Stainless Steel: Exceptional resistance to corrosion and high temperatures, perfect for harsh environments.

Each material brings its unique properties to the table, influencing the fitting's suitability for different environments and pressures.

Why Opt for Stainless Steel Hose Fittings?

Stainless steel stands out for its superior resistance to corrosion and extreme temperatures, making it an excellent choice for challenging applications. Here’s why and when you should consider stainless steel hose fittings:

- Corrosive Environments: Stainless steel is ideal for industries where exposure to corrosive substances is common.
- Temperature Extremes: Capable of handling temperatures from -425°F to 1200°F, these fittings can perform under severe thermal conditions.
- High Pressure: Stainless steel fittings can withstand pressures up to 10,000 psi, with specialized versions rated for up to 20,000 psi.

Despite the higher initial cost, the long-term benefits of durability and minimal maintenance often outweigh the expense, particularly in critical applications.

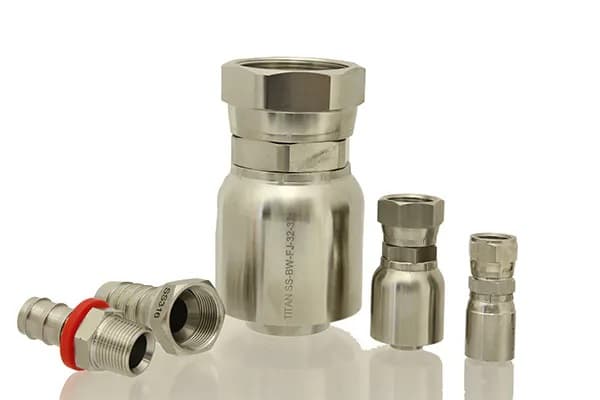

Types of Stainless Steel Hose Fittings and Their Applications

Understanding the variety of stainless steel hose fittings can significantly simplify the selection process:

- Stainless Steel O-Ring Fittings: Best for high-pressure fluid applications, these fittings use an O-ring face seal to ensure a robust connection between the ports and tubing.
- JIC Stainless Hydraulic Hose Fittings: Widely used in hydraulic systems, JIC fittings are renowned for their quality and ability to handle demanding conditions.
- Series 43 Stainless Steel Crimp Fittings: These provide a secure connection by biting into the hose's wire reinforcement, commonly used with braided hydraulic hoses.
- Hose Barbs and Push-On Fittings: Ideal for low-pressure applications, hose barbs work with clamps, whereas push-on fittings, requiring no clamps, offer ease of assembly.

Choosing the Right Fitting: The S.T.A.M.P Method

To ensure optimal performance and avoid potential failures, it's crucial to select the correct type of hose fitting using the S.T.A.M.P method:

- Size: Proper fit to other components.
- Temperature: Withstand the system’s operating temperature.
- Application: Suitability for the specific use case.
- Material: Compatibility with the fluids and environment.
- Pressure: Ability to handle the expected system pressure.

This methodical approach helps in making an informed decision, ensuring the hydraulic system runs efficiently and safely.


Choosing the right stainless steel hose fitting is not just about matching specifications; it’s about understanding the environment, demands of the system, and long-term performance expectations. With this guide, you can navigate the complexities of stainless steel hose fittings and make choices that enhance the efficacy and reliability of your hydraulic systems.
